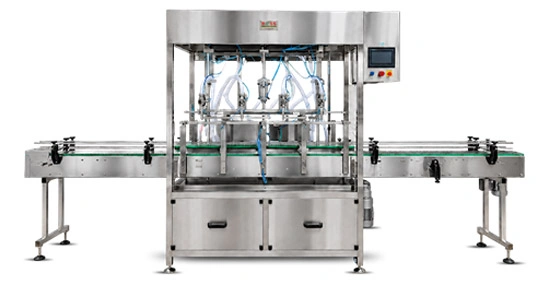

The Servo Gear Pump with Load Cell Filling Machine is a premium, high-accuracy filling system engineered for precise weight-based filling of liquid products in containers ranging from 5 to 15 litter. By integrating advanced servo-controlled gear pump technology with a high-precision load cell weighing system, the machine delivers exceptional filling accuracy, consistency, and repeatability while minimizing product loss.
Designed for modern production environments, the machine automatically measures the actual filled weight in real time and adjusts the filling cycle accordingly, ensuring every container meets the desired fill quantity. The servo-driven system provides smooth operation, faster filling speeds, and superior control compared to conventional filling technologies.
The empty container is placed on the weighing platform or conveyor, where the load cell detects and records its weight. Once the filling cycle is initiated, the servo-driven gear pump transfers the product into the container. Throughout the filling process, the load cell continuously monitors the actual weight and sends feedback to the control system. As the target weight is approached, the machine automatically reduces the filling speed to achieve maximum accuracy. Filling stops instantly when the pre-set weight is reached, ensuring precise and consistent results with minimal product wastage. The filled container is then removed, and the machine is ready for the next filling cycle.
Filling Range |
5 – 15 Liters |
Filling Principle |
Servo Gear Pump with Load Cell |
Filling Accuracy |
±0.5% to ±1.0% |
Filling Heads |
2-10 Head (Customizable) |
Product Type |
Free-Flowing Liquids |
Control System |
PLC with HMI Touch Screen |
Drive System |
Servo Motor |
Contact Parts |
SS304 / SS316 (Optional) |
