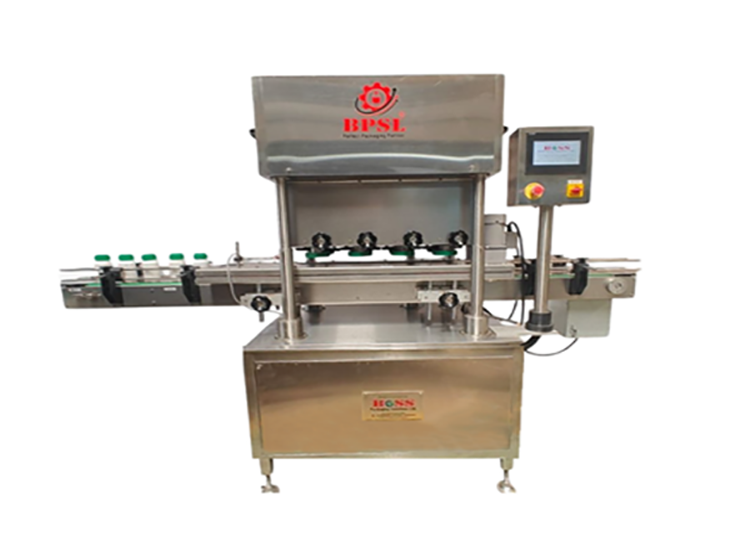

A Linear Capping Machine is a type of packaging equipment designed to securely place and tighten caps on bottles or containers arranged in a linear sequence. It operates by feeding containers in a straight line, where each container is capped one by one with precision and speed. The machine is suitable for various cap types such as screw caps, press-on caps, or snap caps and is widely used in industries like pharmaceuticals, cosmetics, food & beverages, and chemicals. Its compact design ensures easy integration into existing production lines, providing efficient, consistent, and reliable capping with adjustable torque settings to suit different container and cap sizes.
| Machine Type | Automatic / Semi-Automatic Linear Capping Machine |
| Suitable for | Round, square, flat bottles (Plastic/Glass) |
| Machine Usage application | Apply Screw Cap on the Glass, Plastic, HDPE, LDPE and Pet Bottle. |
| Container Size | 30 ml to 5 litters (customizable) |
| Cap Diameter | 20 mm to 75 mm (adjustable) |
| Production Speed | Up to 100 bottles per minute (depends on cap & bottle size) |
| Capping Heads | 8 Spindle |
| Speed Variation | Through Variable Frequency Drive |
| Control System | HMI Touch Screen (optional) |
| Bottle feeder | Adjustable |
| Bottle holding | Through Belt assembly |
| Operating direction | Left to write |
| Cap Feeding | By Cap Feeder Elevator or Cap feeder vibrator/td> |
| PLC Operation & Acrylic Cabinet | Available On (optional) |
| Conveyor System | SS Slat Conveyor with adjustable guide rails |
Please click the below to download our brochure content.
