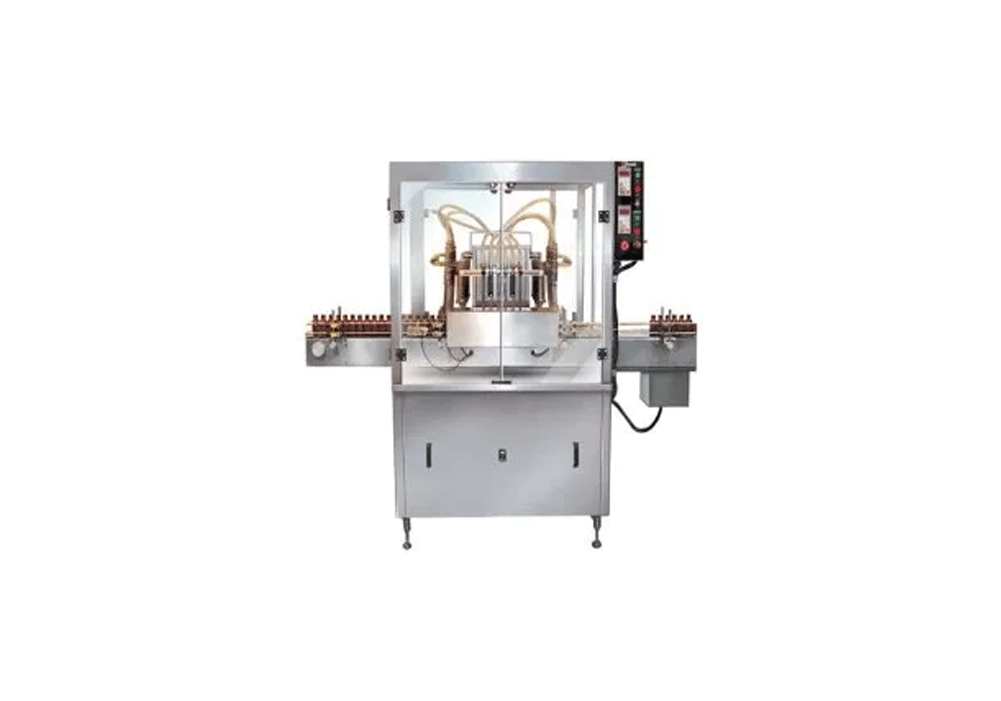

An agrochemical liquid filling machine is industrial equipment designed to accurately fill liquid agricultural chemicals. Some points are lacking in cosmetic and food fillers; these machines are built with specific materials and safety features. These machines are typically made of stainless steel for corrosion resistance. These machines also ensure hygiene and corrosion prevention in materials. Boss Packaging Solutions Limited's specialised systems are designed to handle unique challenges for different liquids because these chemicals are often corrosive, toxic or prone to foaming.
As a trusted Agro chemicals Liquid Filling Machine manufacturer, we focus on delivering well-knowledgeable engineered equipment that ensures accurate dosing, minimal wastage, and safe handling of chemical formulations. With continuous innovation and a sharp understanding of market trends has become a reliable manufacturer.
| Model Type | Automatic Volumetric Liquid Filling Machine |
| Filling Method | Volumetric Piston / Cylinder |
| Filling Range | 100 ml – 5,000 ml (Configurable) |
| Filling Accuracy | ±1.0% (Adjustable) |
| Filling Speed | 20 – 60 Bottles/Min (1–4 Heads) |
| No. of Filling Heads | 2 (Standard) / Optional 4, 6 |
| Container Types Supported | Bottles, Jars, Jerry Cans |
| Material Contact Parts | SS304 (Standard) / SS316 (Optional) |
| Seals & Gaskets | PTFE / Viton (Chemically Resistant) |
| Control System | PLC with HMI Touchscreen |
| Power Supply | 220 V / 50 Hz (Single Phase) |
| Air Supply (If Pneumatic) | 4–6 Bar, Dry & Clean Air |
| Conveyor (Optional) | Yes (Adjustable Speed) |
| Frame Material | SS304 Stainless Steel |
| Dimensions (L × W × H) | ~1,200 × 800 × 1,500 mm |
| Net Weight | ~180 – 250 kg |
| Safety Features | Emergency Stop, Leak Detection |
| Applicable Viscosity | 1 – 1,000 cps (Liquid Chemicals) |
| Operator Interface | Start / Stop, Speed Control, Recipe Select |
| Filling Nozzle Type | Anti-Drip Stainless Steel |
| Suitable For | Pesticides, Herbicides, Liquid Fertilisers, Emulsions |
| Optional Add-ons | Capping, Labelling, Conveyor System |
